Hardware Specifications

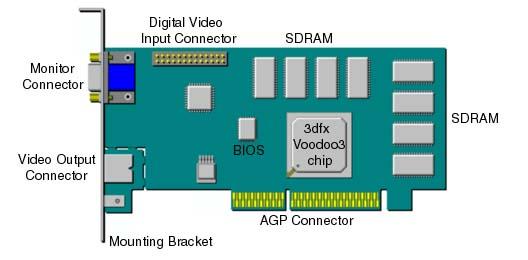

The board diagram below shows the Voodoo3 3000 card. Note the locations of the Monitor Connector, the BIOS and SDRAM chips, the Video Output Connector, and the Digital Video Input Connector (CCR-601) on your Voodoo3 card.
The Voodoo3 3000 AGP card
The diagram below shows a typical layout of bus slots inside a computer. Compare the diagram to your computer to identify the appropriate slot for your new card.

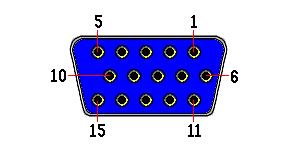

A diagram of the Monitor Connector on your Voodoo3 3000 card and a table of the corresponding display signals is shown below.
 |
Pin 1 | Red |
| Pin 2 | Green | |
| Pin 3 | Blue | |
| Pin 4 | (none) | |
| Pin 5 | Self Test | |
| Pin 6 | Red Return | |
| Pin 7 | Green Return | |
| Pin 8 | Blue Return | |
| Pin 9 | (none) | |
| Pin 10 | Digital Ground | |
| Pin 11 | Digital Ground | |
| Pin 12 | DDC-2B Data | |
| Pin 13 | Horizontal Sync. | |
| Pin 14 | Vertical Sync. | |
| Pin 15 | DDC-2B Clock |

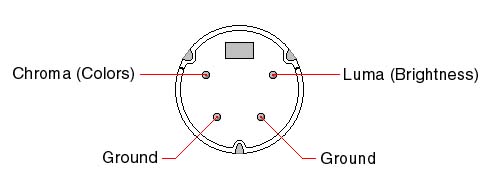

A diagram of the Video Output Connector on your Voodoo3 3000 card is shown below:
The Video Output Connector on your Voodoo3 3000 Card
Use the included Video Output Cable shown here to convert the S-video signal format of the Video Output Connector on your Voodoo3 3000 card into a video line (composite video) signal for use with a standard TV or VCR.
The Voodoo3 Video Output Cable

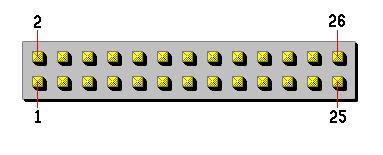

A diagram of the Digital Video Input Connector (CCR-601) and a table of the corresponding signals is shown below.
 |
Pin 1 | Ground |
| Pin 2 | Data (0) | |
| Pin 3 | Ground | |
| Pin 4 | Data (1) | |
| Pin 5 | Ground | |
| Pin 6 | Data (2) | |
| Pin 7 | (none) | |
| Pin 8 | Data (3) | |
| Pin 9 | (none) | |
| Pin 10 | Data (4) | |
| Pin 11 | (none) | |
| Pin 12 | Data (5) | |
| Pin 13 | SCL | |
| Pin 14 | Data (6) | |
| Pin 15 | Ground | |
Pin 16 |
Data (7) | |
| Pin 17 | Ground | |
| Pin 18 | Video Clock | |
| Pin 19 | Ground | |
| Pin 20 | (none) | |
| Pin 21 | Ground | |
| Pin 22 | (none) | |
| Pin 23 | (none) | |
| Pin 24 | (none) | |
| Pin 25 | SDA | |
| Pin 26 | Ground |
This table lists the display modes supported by your Voodoo3 3000 card and the vertical refresh rates available for each display mode.
| Resolution | Number of Colors |
Vertical Frequency (Hz) |
| 320x200 | 256, 65K |
70, 85 |
| 320x240 | 256, 65K |
60, 70, 75, 85 |
| 400x300 | 256, 65K |
60, 70, 75, 85 |
| 512x384 | 256, 65K |
60, 70, 75, 85 |
| 640x200 | 16 |
70 |
| 640x350 | 16 |
70 |
| 640x400 | 256, 65K, 16.7M |
70, 85 |
| 640x480 | 256, 65K, 16.7M |
60, 72, 75, 85, 100, 120, 140, 160 |
| 720x480 | 256, 65K, 16.7M |
60, 72, 85 |
| 720x576 | 256, 65K, 16.7M |
72, 100 |
| 800x600 | 256, 65K, 16.7M |
60, 72, 75, 85, 100, 120, 140, 160 |
| 920x760 | 256, 65K | 60, 75, 85 |
| 1024x768 | 256, 65K, 16.7M |
60, 70, 75, 85, 100, 120 |
| 1152x864 | 256, 65K, 16.7M |
60, 70, 75, 85, 100, 120 |
| 1280x960 | 256, 65K | 60, 75, 85 |
| 1280x1024 | 256, 65K, 16.7M |
60, 70, 75, 85, 100 |
| 1600x1024 | 256, 65K, 16.7M |
60, 76, 85 |
| 1600x1200 | 256, 65K, 16.7M |
60, 65, 70, 75, 80, 85, 100 |
| 1792x1344 | 256, 65K, 16.7M |
60, 75 |
| 1856x1392 | 256, 65K, 16.7M |
60, 75 |
| 1920x1080 | 256, 65K, 16.7M |
60, 72, 75, 85 |
| 1920x1200 | 256, 65K, 16.7M |
60, 76, 85 |
| 1920x1440 | 256, 65K, 16.7M |
60, 75, 85 |
| 2046x1536 | 256, 65K, 16.7M |
60, 75 |
NOTE: All of the display modes shown are not necessarily supported by all monitors or software. Be sure to check the capabilities of your monitor and the requirements of your software before choosing a display mode or refresh rate.
| System | Pentium II or higher CPU |
| Slot | AGP 1.0 compatible |
| Board Dimensions | 6.5" L x 3.25" H |
| Memory Address | A000h - BFFFh + 2 linear apertures assigned by PCI |
| ROM BIOS Address | C000h - C7FFh |
| I/O Address | 3B0h - 3DFh (IBM standard) |
| DMA | No DMA channels exist |
| IRQ (REQUIRED!) | One PCI-assigned interrupt |
